3380A10 HANDBRAKE LEVER - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
1. Disconnect the electrical connection.
Manual illustration 244000463DescriptionConnector
1Handbrake applied switchI040A

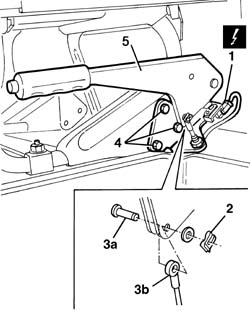

2. Release the retaining spring.3. With the handbrake lever in the rest position, extract the pin (3a) connected to the rod (3b).4. Undo the bolts fixing the handbrake lever.5. Remove the handbrake lever.
Manual illustration 244003958
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Check that the handbrake lever is not damaged.- Place the handbrake lever in position and secure it using the bolts.- Tighten the nut fixing the rod outer casing.- Connect the rod to the handbrake lever using the pin.- Attach the retaining spring.- Connect the electrical connection.
Manual illustration 244000463DescriptionConnector
.Handbrake applied switchI040A
Op. 3380A04 HANDBRAKE - CHECK TRAVEL- If necessary, < R1 >
