FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

5020A72 AIR INTAKE AND RECIRCULATION FLAP FAN/FLAP, L.H. OR R.H.-DISMANTLE AND REBUILD

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

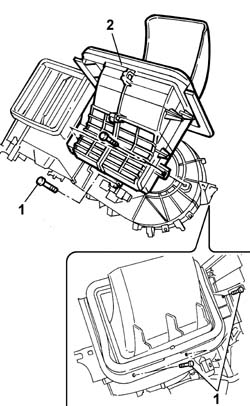

Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY Op. 5020A12 HEATER CASING - R+R WITH FACIA REMOVED1. Undo the retaining bolts.2. Remove the recirculation air intake unit.
Manual illustration 244004175
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Release the control cable (1a) from the spring (1b) and disconnect it from the recirculation air intake.
Manual illustration 244004176
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Connect the control cable and secure it to the spring.- Position the recirculation air intake unit and tighten the fixing bolts. Op. 5020A12 HEATER CASING - R+R WITH FACIA REMOVED Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY
