5050A10 WINDSCREEN WASHER FLUID RESERVOIR (IN ENGINE BAY) - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

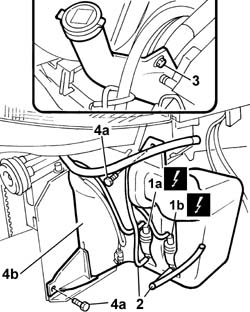

- Disconnect the negative battery terminal. Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- < R1 > - [On both sides] Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 7210E10 R.R. FRONT BUMPER1. Disconnect the electrical connection for the water supply pump to the windscreen washer jets (1a) and for the water supply pump to the headlamp washer jets (1b).
Manual illustration 244000463DescriptionConnector
1aElectric windscreen washer pump motorN020
Manual illustration 244000463DescriptionConnector
1bHeadlamp washer pump motorN025
2. Disconnect the pipes from the windscreen washer pump and from the headlamp washer jet.3. Undo the upper bolt fixing the reservoir.- Partly raise the vehicle on the lift.4. Undo the bolts (4a) fixing the headlamp and windscreen washer fluid reservoir (4b).- Remove the windscreen washer fluid reservoir.- At the bench, separate the electric windscreen washer and headlamp washer pumps from the reservoir.
Manual illustration 244004333
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fasten the windscreen and headlamp washer pumps to the reservoir.- Place the reservoir in the correct position for refitting.- Fasten the reservoir to the bodyshell tightening the fixing bolts.- Raise the vehicle on the lift.- Connect the pipes to the windscreen and headlamp washer pumps.- Connect the electrical connection for the water supply pump to the windscreen washer jets and for the water supply pump to the headlamp washer jets.
Manual illustration 244000463DescriptionConnector
.Electric windscreen washer pump motorN020
Manual illustration 244000463DescriptionConnector
.Headlamp washer pump motorN025
Op. 7210E10 R.R. FRONT BUMPER Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- < R1 > - [On both sides] Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R- Check the level of the fluid in the reservoir and top up if necessary.- Connect the negative battery terminal.
