FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

5530A10 ALTERNATOR - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V
Engines: 2.0 16V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 1092B40 AIR CONDITIONER COMPRESSOR/ALTERNATOR DRIVE BELT - R + R See in Op. 1092G15 See in Op. 1092G201. Remove the plastic protectors.2. Undo the retaining nuts.3. Disconnect the electrical connections.
Manual illustration 244000463DescriptionConnector
3AlternatorA010A
Manual illustration 244000463DescriptionConnector
3AlternatorA010B
4. Unscrew the reaction bracket retaining bolt.5. Undo retaining bolts (5a) and remove alternator (5b).
Manual illustration 244004457
Engines: 2.0 16V

RefittingManual illustration 21

RemovingManual illustration 20
- Position the alternator and tighten the retaining bolts.- Tighten the reaction bracket retaining nut.- Position the leads and tighten the retaining nuts.
Manual illustration 244000463DescriptionConnector
.AlternatorA010A
Manual illustration 244000463DescriptionConnector
.AlternatorA010B
See in Op. 1092G20 See in Op. 1092G15 Op. 1092B40 AIR CONDITIONER COMPRESSOR/ALTERNATOR DRIVE BELT - R + R- Connect the negative battery terminal.
Engines: 2.0 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 4450B04 RIGHT FRONT WHEEL R R Op. 1092G10 SINGLE ENGINE BELT R R See in Op. 1092G20- Disconnect the alternator electrical wiring.
Manual illustration 244000463DescriptionConnector
.AlternatorA010A
Manual illustration 244000463DescriptionConnector
.AlternatorA010B

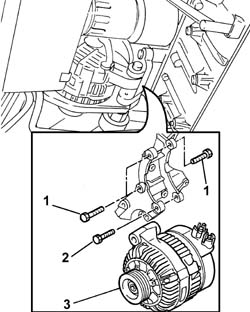

1. Undo the upper bolts fixing the alternator to the mounting.2. Undo the lower rear bolt fixing the alternator.3. Remove the alternator from the lower part of the engine compartment.
Manual illustration 244004458
Engines: 2.0 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the alternator in the housing on the support and tighten the lower fixing bolt and the front upper fixing bolt.- Tighten the rear upper fixing bolt and tighten all the bolts to torque.- Tighten the upper alternator retaining bolt to torque.- Connect the alternator electrical wiring.
Manual illustration 244000463DescriptionConnector
.AlternatorA010A
Manual illustration 244000463DescriptionConnector
.AlternatorA010B
See in Op. 1092G20 Op. 1092G10 SINGLE ENGINE BELT R R Op. 4450B04 RIGHT FRONT WHEEL R R Op. 7055B54 UNDER-ENGINE GUARD - R R
Engines: 2.3 JTD 16V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal.1. Undo the bolts securing the power steering fluid reservoir bracket.2. Remove the power assisted steering fluid reservoir complete with bracket without disconnecting the fluid pipes.
Manual illustration 244004459
Engines: 2.3 JTD 16V
1. Disconnect the band securing the fluid pipes to the reservoir.2. Release the electrical connection shown from the connection on the reservoir.3. Undo the nuts fixing the expansion tank.4. Remove the expansion tank.
Manual illustration 244004460
Engines: 2.3 JTD 16V
1. Disconnect the electrical connection for the voltage regulator on the alternator.
Manual illustration 244000463DescriptionConnector
1AlternatorA010A
- Disconnect the remaining electrical wiring from the alternator.
Manual illustration 244000463DescriptionConnector
.AlternatorA010B
Manual illustration 244004461
Engines: 2.3 JTD 16V
Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 4450B04 RIGHT FRONT WHEEL R R Op. 1092B72 POWER STEERING PUMP DRIVE BELT - ALTERNATOR - R&R1. Undo the upper bolt fixing the alternator.2. Loosen the lower alternator retaining bolts.3. Remove the alternator from the lower part of the engine compartment.
Manual illustration 244004462
Engines: 2.3 JTD 16V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the alternator via the lower part of the engine compartment.- Tighten the lower alternator retaining bolts.- Tighten the upper bolt fixing the alternator.- Tighten the alternator retaining bolts.
Manual illustration 244000559Value - daNmFasteningComponentØ
.(Lower) 4.9BoltALTERNATOR ASSEMBLYM10
- Tighten the upper alternator retaining bolt to torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.(upper) 4.9BoltALTERNATOR ASSEMBLYM10
Op. 1092B72 POWER STEERING PUMP DRIVE BELT - ALTERNATOR - R&R Op. 4450B04 RIGHT FRONT WHEEL R R Op. 7055B54 UNDER-ENGINE GUARD - R R- Connect the electrical connection for the voltage regulator on the alternator.
Manual illustration 244000463DescriptionConnector
.AlternatorA010A
- Disconnect the remaining electrical wiring from the alternator.
Manual illustration 244000463DescriptionConnector
.AlternatorA010B
- Fit the engine coolant reservoir and tighten the nuts fixing it to the bodyshell.- Fasten the electrical connection in the housing on the tank.- Connect the band retaining the coolant pipe to the cylinder head.- Fit the power steering fluid reservoir complete with bracket.- Tighten the bolts fixing the power assisted steering fluid reservoir mounting bracket to the crossmember.- Connect the negative battery terminal.
