7005A24 FRONT SIDE DOOR R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- (both sides) Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 7210E10 R.R. FRONT BUMPER1. Undo the bolts fixing the hinges.2. Remove the hinges.

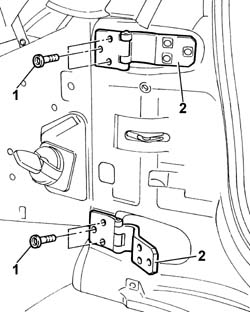

Manual illustration 244004568
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Position the hinges and fasten them to the bodyshell tightening the fixing bolts to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.4,4BoltFRONT SIDE DOOR HINGESM10
Op. 7210E10 R.R. FRONT BUMPER Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R- [both sides]
