7005M20 FRONT SIDE DOOR ELECTRIC WINDOW SYSTEM - R R WITH DOOR PANEL/SUPPORT FRAME REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

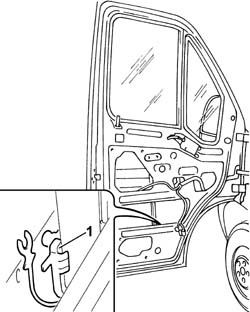

Op. 7005D22 FRONT SIDE DOOR DESCENDING WINDOW GLASS GUIDE (ONE) - R R WITH DOOR PANEL (AND SUPPORT FRAME) REMOVED- Lower the window glass.1. Release the window glass from the lower supporting clip.
Manual illustration 244004593
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Completely raise the window glass (1a) and keep it secured in position using suitable equipment (1b).
Manual illustration 244004594
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Disconnect the electrical connector for the window opening motor.
Manual illustration 244000463DescriptionConnector
1Left external rear view mirrorP060
Manual illustration 244000463DescriptionConnector
1Right external rear view mirrorP061
2. Undo the window opening mechanism fixing bolts.
Manual illustration 244004595
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Remove the window opening mechanism from the door frame.
Manual illustration 244004596
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Insert the window opening mechanism in the special housing in the door frame.- Fasten the window opening mechanism to the door frame tightening the fixing bolts.- Connect the electrical connector for the window opening mechanism motor.
Manual illustration 244000463DescriptionConnector
.Left external rear view mirrorP060
Manual illustration 244000463DescriptionConnector
.Right external rear view mirrorP061
- Lower the window and secure it to the lower window opening mechanism supporting clip.- Raise the window completely. Op. 7005D22 FRONT SIDE DOOR DESCENDING WINDOW GLASS GUIDE (ONE) - R R WITH DOOR PANEL (AND SUPPORT FRAME) REMOVED
