7210E36 R.R. FRONT SIDE DOOR

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

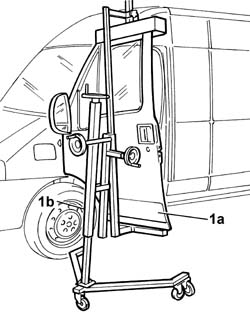

- Disconnect the negative battery terminal.1. Position a suitable support (1b) on the door (1a).
Manual illustration 244004789
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7040A20 LEFT DASHBOARD LOWER TRIM - R.R.- Disconnect the connectors for the passenger side side door wiring.
Manual illustration 244000463DescriptionConnector
.Additional dashboard/left front door couplingD016A
Manual illustration 244000463DescriptionConnector
.Additional dashboard/left front door couplingD016B
Manual illustration 244000463DescriptionConnector
.Additional dashboard/right front door couplingD017A
Manual illustration 244000463DescriptionConnector
.Additional dashboard/right front door couplingD017B

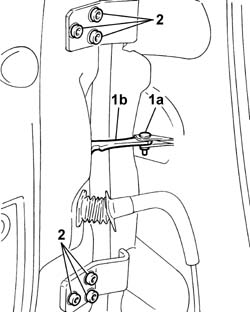

- Fasten a sensor to one of the passenger side door wiring connectors.- Release the door wiring from the passenger compartment.- Release the sensor from the door wiring connector.1. Undo the bolt (1a) fixing the door check strap (1b) to the bodyshell.2. Undo the bolts fixing the door hinges.
Manual illustration 244004794
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Remove the front side door.
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Offer up the door in the fitting position, using a suitable support.- Fasten the door check strap to the bodyshell tightening the fixing bolt.- Fasten the door hinges tightening the fixing bolts.- Secure the sensor to one of the door wiring connectors.- Fit the door wiring in the special passages making use of the sensor.- Release the sensor from the door wiring connector.- Connect the electrical connectors for the passenger side door wiring.
Manual illustration 244000463DescriptionConnector
.Additional dashboard/left front door couplingD016A
Manual illustration 244000463DescriptionConnector
.Additional dashboard/left front door couplingD016B
Manual illustration 244000463DescriptionConnector
.Additional dashboard/right front door couplingD017A
Manual illustration 244000463DescriptionConnector
.Additional dashboard/right front door couplingD017B
Op. 7040A20 LEFT DASHBOARD LOWER TRIM - R.R. Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT- Connect the negative battery terminal.
