1043A11 GPL TANK MOUNTING BRACKET -R.R.

Engines: 2.0 16V

Removing

Refitting

Position the vehicle on the lift.Op. 1043E12 GPL TANK GUARD PROTECTION R R1. Undo the spacers (1a) and the nuts (1b) fixing the LPG tank mounting bracket.2. Remove the LPG tank mounting bracket.

Engines: 2.0 16V

Refitting

Removing

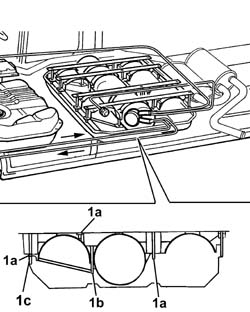

Fit the LPG tank mounting bracket and tighten the nuts.1. Tighten the fixing nuts (1a) and (1b) to torque and then the spacers (1c) securing the LPG canister mounting bracket to the bodyshell.

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
1a	4	Nut	on floor	M12 X 1.25

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
1b	8	Nut	-	M12 X 1.25

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
1c	4	Spacer	-	M12 X 1.25
