- Position the vehicle on a lift.- Remove the protective cap from the bleed valve on one of the front brake calipers.- Connect the recovery device (pipe and reservoir) to the brake caliper bleed valve.- Operate the brake pedal until the brake/clutch reservoir is drained.1. Working from inside the vehicle, act on the locking spring (1a) and disconnect the rigid pipe (1b) from the master cylinder (pump).
- Position the vehicle on a lift.- Remove the protective cap from the bleed valve on one of the front brake calipers.- Connect the recovery device (pipe and reservoir) to the brake caliper bleed valve.- Operate the brake pedal until the brake/clutch reservoir is drained.1. Working from inside the vehicle, act on the locking spring (1a) and disconnect the rigid pipe (1b) from the master cylinder (pump).
Engines: 2.0 JTD 8V

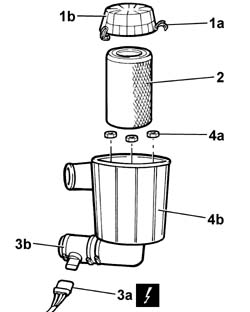

See in Op. 1048A21 See in Op. 1048A501. Release the retaining springs (1a) and remove the cover (1b).2. Remove the filter element.3. Disconnect the electrical connection (3a) for the air flow meter (3b).
Description
Connector
3a
Air flow meter
K041
4. Undo the fixing nuts (4a) and remove the air filter casing (4b).
Engines: 2.0 JTD 8V
1. Lift up the spring (1a) and disconnect the pipe (1b) from the vibration damper (1c).- Remove the pipe from the engine compartment.
- Fit the pipe in the housing in the engine compartment.- Connect the pipe to the clutch release cylinder.- Fit the air filter casing and tighten the nuts fixing it to the mounting bracket.- Connect the electrical connection for the air flow meter.
Description
Connector
.
Air flow meter
K041
- Fit the filter element.- Fit the cover and secure it using the springs. See in Op. 1048A50 See in Op. 1048A21- Connect the rigid pipe to the master cylinder (pump) and secure it using the spring. Op. 0010T67 HYDRAULIC CLUTCH SYSTEM BLEED AIR
- Position the vehicle on a lift.- Remove the protective cap from the bleed valve on one of the front brake calipers.- Connect the recovery device (pipe and reservoir) to the brake caliper bleed valve.- Operate the brake pedal until the brake/clutch reservoir is drained.1. Working from inside the vehicle, act on the locking spring (1a) and disconnect the rigid pipe (1b) from the master cylinder (pump).
Engines: 2.3 JTD 16V
See in Op. 1048A501. Undo the bolts fixing the air filter casing mounting bracket.2. Undo the bolt fixing the air filter casing to the bracket joined to the windscreen washer fluid reservoir.3. Remove the air filter casing from the engine compartment.
Engines: 2.3 JTD 16V
1. Lift up the spring (1a) and disconnect the pipe (1b) from the clutch release cylinder.- Raise the vehicle.- Remove the pipe from the engine compartment.
- Fit the pipe in the housing in the engine compartment.- Connect the pipe to the clutch release cylinder.- Fit the air filter casing and tighten the nuts fixing it to the mounting and to the screen washer fluid reservoir. See in Op. 1048A50- Op. 0010T67 HYDRAULIC CLUTCH SYSTEM BLEED AIR
- Position the vehicle on a lift.- Remove the protective cap from the bleed valve on one of the front brake calipers.- Connect the recovery device (pipe and reservoir) to the brake caliper bleed valve.- Operate the brake pedal until the brake/clutch reservoir is drained.1. Working from inside the vehicle, act on the locking spring (1a) and disconnect the rigid pipe (1b) from the master cylinder (pump).
Engines: 2.8 JTD 8V
See in Op. 1048A21 Op. 1048A41 SLEEVE FROM DEBIMETER TO TURBOCHARGER - R R1. Release the retaining springs (1a) and remove the cover (1b).2. Remove the filter element.3. Disconnect the electrical connection (3a) for the air flow meter (3b).
Description
Connector
3a
Air flow meter
K041
4. Undo the fixing nuts (4a) and remove the air filter casing (4b).
Engines: 2.8 JTD 8V
1. Lift up the spring (1a) and disconnect the pipe (1b) from the clutch release cylinder.- Remove the pipe from the engine compartment.
- Fit the pipe in the housing in the engine compartment.- Connect the pipe to the clutch release cylinder.- Fit the air filter casing and tighten the nuts fixing it to the mounting bracket.- Connect the electrical connection for the air flow meter.
