3380C10 HANDBRAKE SHOES - R.R.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

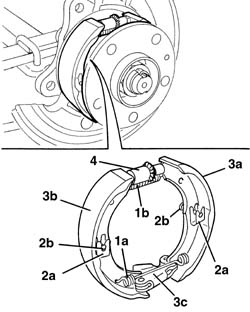

Op. 3310B30 REAR BRAKE DISCS R R Op. 3310B50 REAR BRAKE DISCS R R1. Release the shoe return springs (1a) and (1b) on one side.2. Release the shoe retaining springs (2a), then remove the pins (2b) from the rear.3. Remove the shoes (3a) and (3b) releasing them from the handbrake attachment linkage (3c).4. Separate the shoes from the clearance recovery device.
Manual illustration 244006190
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Place the shoes and the clearance recovery device in position.- Place the handbrake attachment linkage in position.- Refit the shoe retaining springs and pins in position.- Attach the shoe return springs.- Check that the brakes are working. Op. 3310B50 REAR BRAKE DISCS R R Op. 3310B30 REAR BRAKE DISCS R R
