3380C41 REAR WHEEL BRAKE BACK PLATE - R.R.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

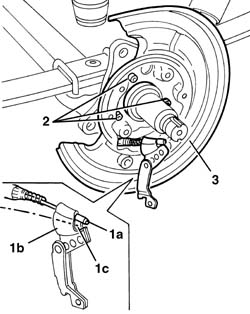

Op. 3310B30 REAR BRAKE DISCS R R Op. 3310B50 REAR BRAKE DISCS R R Op. 3380C10 HANDBRAKE SHOES - R.R. Op. 4450D10 HUB OF ONE REAR WHEEL, L/H OR R/H - R+R WITH WHEEL REMOVED1. Release the handbrake cable terminal retainer (1a) from the linkage (1b) passing it through area (1c).2. Undo the bolts fixing the brake back plate.3. Remove the brake back plate.
Manual illustration 244006191
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Place the brake back plate in position.- Tighten the plate fixing bolts.- Attach the handbrake cable terminal retainer to the linkage. Op. 4450D10 HUB OF ONE REAR WHEEL, L/H OR R/H - R+R WITH WHEEL REMOVED Op. 3380C10 HANDBRAKE SHOES - R.R. Op. 3310B50 REAR BRAKE DISCS R R Op. 3310B30 REAR BRAKE DISCS R R Op. 3380A04 HANDBRAKE - CHECK TRAVEL
