Procedures

4450D18 REAR WHEEL STUB AXLE - R.& R.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Equipment / version codes: Disc brakes [B51]

Removing

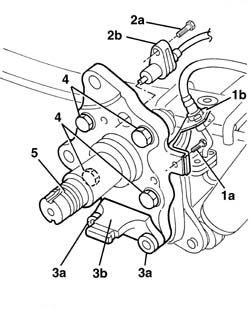

Op. 3310B30 REAR BRAKE DISCS R R Op. 3310B50 REAR BRAKE DISCS R R Op. 3380C10 HANDBRAKE SHOES - R.R. Op. 4450D10 HUB OF ONE REAR WHEEL, L/H OR R/H - R+R WITH WHEEL REMOVED Op. 3380C41 REAR WHEEL BRAKE BACK PLATE - R.R.1. Undo the bolt (1a) and move the brake pipe support (1b).2. Undo the bolt (2a) and move the ABS sensor (2b).3. Undo the bolts (3a) and remove the support (3b).4. Undo the stub axle fixing bolts.5. Remove the stub axle.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Equipment / version codes: Disc brakes [B51]

- Place the stub axle in position.- Tighten the stub axle fixing bolts.

[symbol: coppie 01.jpg]	Value - daNm	Fastening	Component	Ø
-	13.7 - 19.9	Bolt	-	M14x1.5

- Position the support and secure it using the bolts.- Position the ABS sensor and secure it using the bolt.

[symbol: coppie 02.jpg]	Value - daNm	Fastening	Component	Ø
-	0,8	Bolt	-	M6

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Equipment / version codes: Drum brakes [B52]

1. Undo the stub axle fixing bolts.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Equipment / version codes: Drum brakes [B52]

- Place the stub axle and brake back plate in position.- Tighten the stub axle and brake back plate fixing bolts.

[symbol: coppie 03.jpg]	Value - daNm	Fastening	Component	Ø
-	13.7 - 19.9	Bolt	-	M14x1.5

- Position the ABS sensor and secure it using the bolt.

[symbol: coppie 04.jpg]	Value - daNm	Fastening	Component	Ø
-	0,8	Bolt	-	M6
